1、 Product overview

WNL vertical sewage mud pump is designed according to the actual situation of sewage discharge. Used in chemical industry, printing and dyeing, medicine, food, etc

The industry sucks thick pulp, paste and mobile sludge of urban rivers, which can be used for the suction, delivery, pouring and sprinkling of river mud, feces and pulp feed,

And can be used for drainage or drought resistance.

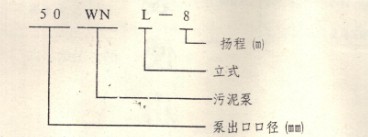

2、 Model meaning

　　

3、 Structure diagram

4、 Technical characteristics

5、 Structural features

WNL vertical sewage mud pump is a single-stage single suction centrifugal pump, mainly including pump body, impeller, pump cover, support cylinder, motor frame, etc,

The impeller is of three piece semi closed type, which has good trafficability and is not easy to block. The shaft is made of high-quality 45 steel, and the shaft seal is mechanically sealed to prevent water from entering the bearing.

Table 1 WNL (vertical sewage mud pump)
规格型号	流量Q (m3/h)	扬程H (m)	转速n (r/min)	配带电动机
				型号	功率 (KW)
50WNL-8	20	8	2900	Y802-2	1.1
50WNL-10	30	10	1450	Y90L-4	1.5
50WNL-25	30	25	1450	Y100L2-4	3
65WNL-12	40	12	1450	Y90L-4	1.5
75WNL-14	60	14	1450	Y100L2-4	3
75WNL-25	60	25	1450	Y132S-4	5.5
100WNL-8	80	8	1450	Y112M-4	4
100WNL-16	100	16	1450	Y132S-4	5.5
100WNL-25	100	25	1450	Y132M-4	7.5

表二 JYWNL(搅匀污泥泵)
规格型号	流量Q (m3/h)	扬程H (m)	转速n (r/min)	配带电动机
				型号	功率 (KW)
50JYWNL-8	20	8	1450	Y100L1-4	2.2
75JYWNL-12	60	12	1450	Y132S-4	5.5
100JYWNL-9	100	9	1450	Y132M-4	7.5
