DM type mining multi-stage centrifugal pump is a horizontal single suction multi-stage centrifugal pump. This type of pump is used to transport neutral mineral water (particle size less than 0.5mm) with solid particle content not more than 1.5% and other similar sewage. The temperature of the conveyed medium is not more than 80 ℃. It is suitable for iron and steel plants, mine drainage, sewage transportation and other occasions.

• Flow: 3.7-1350m ³/ h

• Lift: 49-1800m

• Price: 158-25800 yuan

• Efficiency: 3-1120kw

• Pump weight: 32% - 84%

• Motor power: 78-3750kg

NPSH: 2.0-7.0m

Product Overview

Overview of DM mining multi-stage centrifugal pump:

DM type mining multi-stage centrifugal pump is a horizontal single suction multi-stage centrifugal pump. This type of pump is used to transport neutral mineral water (with particle size less than 0.5mm) and other similar sewage with solid particle content not more than 1.5%. The temperature of the conveyed medium is not more than 80 ℃. It is suitable for iron and steel plants, mine drainage, sewage transportation and other occasions

DM mining multi-stage centrifugal pump is a hydraulic model of high-efficiency energy-saving products recommended by the state. Through constant updating and R&D by our factory, it has the advantages of high efficiency, wide performance range, safe and stable operation, low noise, convenient installation and maintenance, and long service life. Its technical level is in a good position in China, and its product performance is reliable.

Parameter range of DM mining multi-stage centrifugal pump:

Flow: 3.7-1350m ³/ h

Lift: 49-1800m

Model meaning of DM mining multi-stage centrifugal pump:

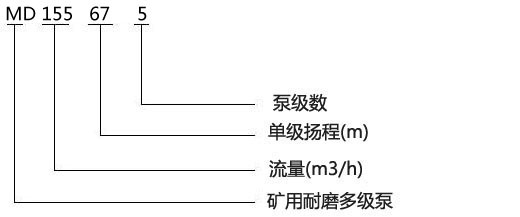

Example: DM155-67X5;

DM wear-resistant multi-stage centrifugal pump for mining;

155 - flow at design point (m3/h);

67 - Single stage lift of pump at design point (m);

5 - The number of stages of the pump is 5.



performance parameter

The pneumatic diaphragm pump is powered by compressed air and drives two flexible diaphragms in the chamber to deliver fluid. It has no gear structure and does not rotate when working. It allows the delivery of fluid containing particles of a certain size. With its unique explosion-proof performance, it is particularly suitable for the high gas environment in the coal industry, especially the drainage and sewage discharge operations at the heading face. Ingersoll Rand ARO pneumatic diaphragm pump has passed the China Coal Mine Safety Certification.

Provide products that can be used in hazardous environments. The classic PitBoss series mining pump adopts a special spark discharge alloy shell. These products have passed the comprehensive certification and conform to the ATEX EX I Ⅱ 2GDX grade. They are specially designed for such a special explosive environment in the coal industry, and are also suitable for production or processing workshops with dangerous gases, so as to build a solid safety line for your production.

1. Improved overflow pipeline

■ Enhance the ability to handle solid materials,

It can pass through impurities with large diameter of 25.4mm

2. Convenient handle

■ It is convenient for the operator to move

3. Removable filter screen

■ Prevent impurity particles from entering the pump body

■ Remove the filter screen when using the siphon

4. Integral base plate

■ Stable operation in soft sediment terrain

■ Enhanced support stability

5. One way exhaust valve

■ Can be used underwater

Typical Applications

■ Sewage discharge under various mines, mud transportation ■ mud impurity transportation on construction site

Pit Boss "performance description

Pit Boss "performance description

接口口径	1-1/2"	2"	3"
型号	66M17O-1EB-C	66M270-1EB-C	66M320-1EB-C
大流量L/min	320.8	590.5	21.3
大工作压力bar	8.3	8.3	8.3
大浮悬浮物直径mm	12.7	19	25.4
流体接口	1.5'BSP 接口	2-BSP接口	3'BSP 接口
重量 Kg	25.19	33.63	53.67
干吸高度 m	5.8	8.3	5.4
噪咅等级dB(A)	107	105.3	108.7



接口口径	1"	1-1/2"
型号	BQG-70/0.2	BQG-150/0.2
大流量L/min	133(7.98)	340.7(20.44)
大工作压力bar	8.3	8.3
大浮悬浮物直径mm	3.2	6.4

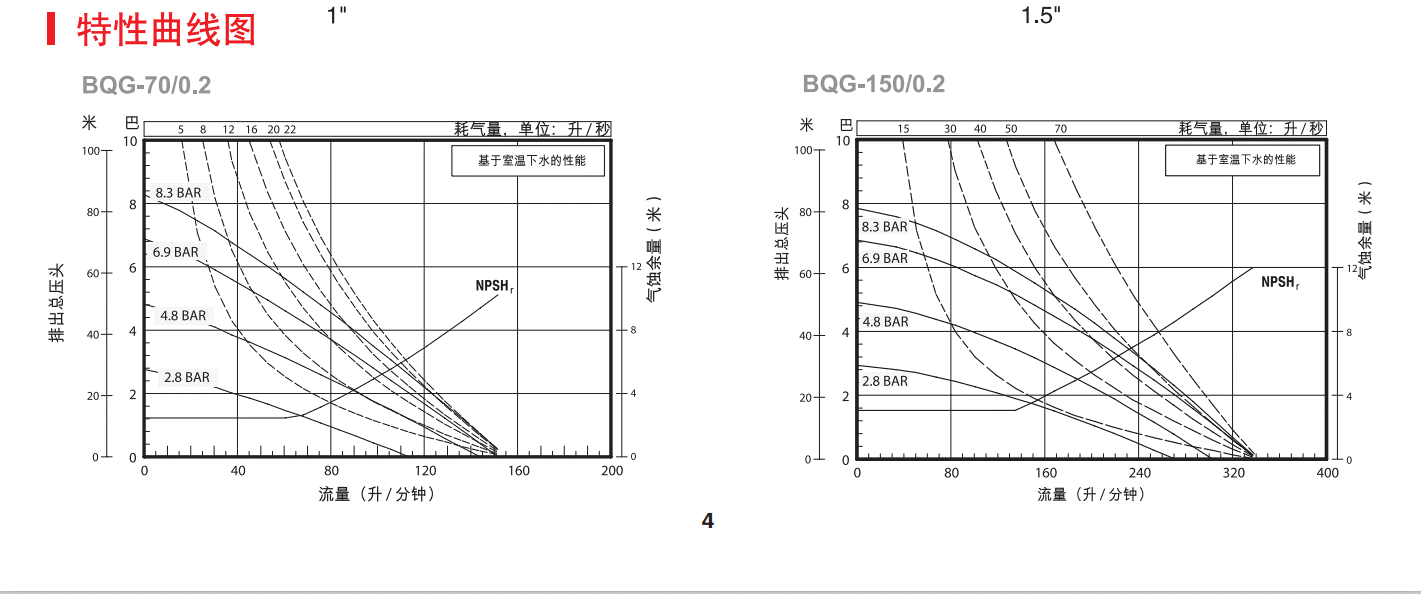

大扬程m（出口压力为6kg时）	60	60
进气口尺寸	1/4-18N.P.T.F.-1	1/2-14N.P.T.F.-1
流体接口	1"BSP接口	1.5"BSP接口
重量 Kg	8.6	23.4
干吸高度 m	6.1	5.8
噪咅等级dB(A)	64.5	77.7

　　

ARO - Intelligent Automatic Drainage System

Ingersoll Rand ARO intelligent automatic drainage system makes use of the good pneumatic liquid level detection principle in the industry, and can easily control the liquid level to the required level by using only two air pipes together with ARO mining pump

Within the scope of, avoid empty beating of diaphragm pump, significantly reduce the underground inspection time of miners, and effectively help customers to save gas consumption and reduce costs.

At present, customers who have used Ingersoll Rand ARO intelligent automatic drainage system:

Shenhua Shendong Coal Group Shenhua Ningxia Coal Industry Group Inner Mongolia Dayan Mining Group

Datun Coal Power Group Shanxi Lu'an Mining Group Shanxi Xishan Coal Power Group

Classic Applications

■ Automatic control of the liquid level in the sump of various mine shafts

reliable

■ Designed to have a long service life and adapt to the harsh downhole environment

Efficient

■ Avoid empty beating of diaphragm pump and save energy

■ Very low gas consumption

security

■ Fully pneumatic structure, without any electrical components

convenient

■ Weight is only 4 kg (excluding pump)

■ It can be directly installed on 2 "and 3" mining pumps

■ It can move with the pump

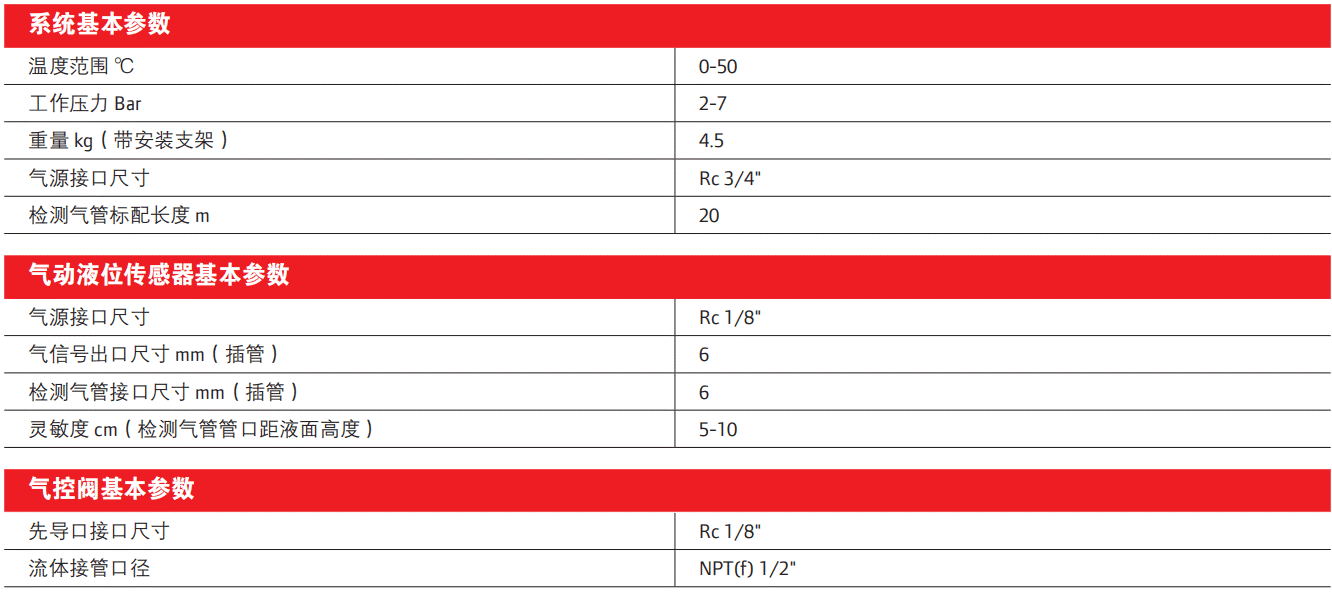

系统型号	适用矿用泵接口口径	适用矿用泵型号	配置说明
SCD501BN08-V1B	2"	BQG-350/0.2	含泵体安装支架
SCD501BN08-V1C	3"	BQG-450/0.2	含泵体安装支架

*英格索兰智能自动排水系统不含矿用泵

Implementation function

■ When the liquid level of the water sump rises and exceeds the high liquid level detection nozzle, start the diaphragm pump.

■ When the liquid level of the water sump decreases and approaches the low liquid level detection nozzle, close the diaphragm pump.

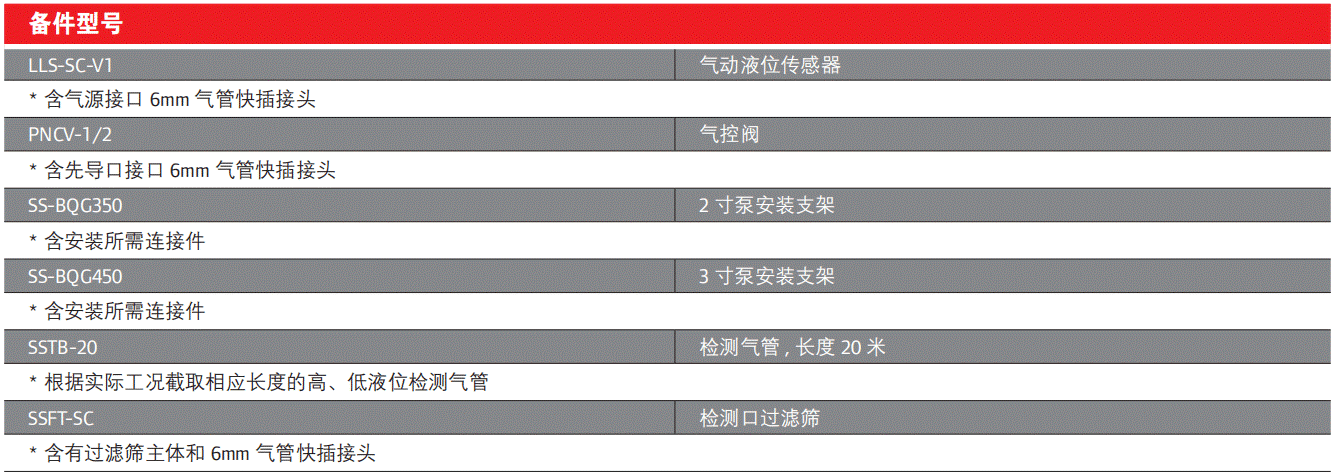

Main components

Pneumatic liquid level sensor

■ Judge the state of liquid level by sensing the tiny air pressure in the air pipe connected with the detection port.

■ High sensitivity without repeated adjustment. Pneumatic control valve

■ Low starting pressure, suitable for downhole low air pressure conditions.

■ High action life, strong tolerance, and adapt to the requirements of harsh downhole conditions and frequent startup and shutdown. Detection of gas pipe

■ Just fix the orifices of the "high" and "low" detection gas pipes near the required liquid level, and the water level range can be easily set.

■ The installation and disassembly are flexible, and the required installation space is very small.

MD型矿用耐磨多级离心泵
序   号	MA   煤安证号	KA   矿安证号	型号规格
1	MBB140123	KBB140037	MD6-25×(2~12)
2	MBB140120	KBB140047	MD6-50×(2~12)
3	MBB140124	KBB140048	MD6-80×(3~12)
4	MBB140164	KBB140071	MD12-25×(2~12)
5	MBB140125	KBB140057	MD12-50×(2~12)
6	MBB140179	KBB140058	MD12-80×(3~12)
7	MBB140184	KBB140066	MD25-30×(2~10)
8	MBB140182	KBB140067	MD25-50×(2~12)
9	MBB140172	KBB140068	MD25-80×(3~12)
10	MBB140154	KBB140040	MD46-30×(2~10)
11	MBB140172	KBB140041	MD46-50×(2~12)
12	MBB140136	KBB140042	MD46-80×(3~12)
13	MBB140161	KBB140050	MD85-45×(2~10)
14	MBB140155	KBB140046	MD85-67×(2~10)
15	MBB140128	KBB140052	MD85-80×(3~12)
16	MBB140138	KBB140055	MD100-25×(2~10)
17	MBB140159	KBB140051	MD120-50×(2~12)
18	MBB140151	KBB140061	MD150-50×(2~12)
19	MBB140131	KBB140062	MD150-80×(3~12)
20	MBB140174	KBB140059	MD150-100×(3~12)
21	MBB140173	KBB140060	MD155-30×(2~10)
22	MBB140118	KBB140063	MD155-67×(2~10)
23	MBB140152	KBB140065	MD200-50×(2~12)
24	MBB140135	KBB140072	MD200-100×(3~10)
25	MBB140142	KBB140069	MD280-43×(2~10)
26	MBB140127	KBB140070	MD280-65×(2~10)
27	MBB140122	KBB140064	MD280-95×(4~10)
28	MBB140178	KBB140056	MD360-40×(2~10)
29	MBB140180	KBB140054	MD360-60×(4~10)
30	MBB140146	KBB140044	MD360-95×(4~10)
31	MBB140168	KBB140038	MD450-60×(2~10)
32	MBB140167	KBB140039	MD450-95×(4~10)
33	MBB140169	KBB140043	MD500-57×(2~10)
34	MBB140145	KBB140045	MD600-60×(2~10)
35	MBB140137	KBB140049	MD720-60×(2~10)
36	MBB140132	KBB140009	200MD43×(2~10)
