summary

SP and SPRS submerged pumps are vertical centrifugal slurry pumps, immersed in liquid, used to transport abrasive, coarse particles and high concentration slurry. It does not need any shaft seal and shaft seal water, and it can work normally under the condition of insufficient suction.

The flow passage parts of SP type pump are made of wear-resistant metal.

The submerged parts of SPR type pump are all rubber lined, which is suitable for conveying abrasive slurry without edges and corners.

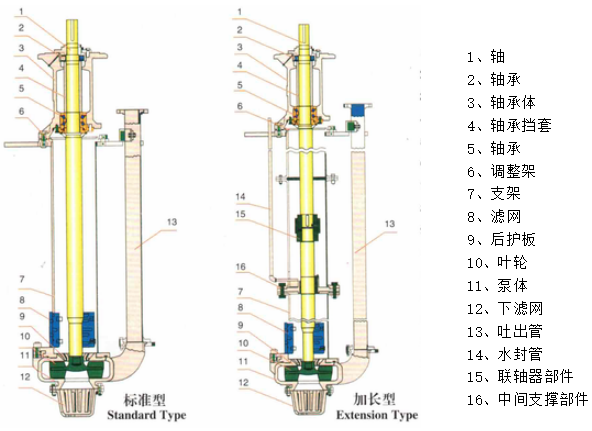

The submerged pump with the letter "L" in the model is an extended shaft series, which can be applied to the working condition with deep liquid level. This type of pump has added a guide bearing structure on the basis of the standard pump, which makes the operation more stable and more widely applicable. However, the guide bearing shall be provided with flushing water.

SP型液下泵全部为金属件，用于输送磨蚀性渣浆

SPR型液下泵是橡胶保护，用于输送酸性腐蚀性渣浆

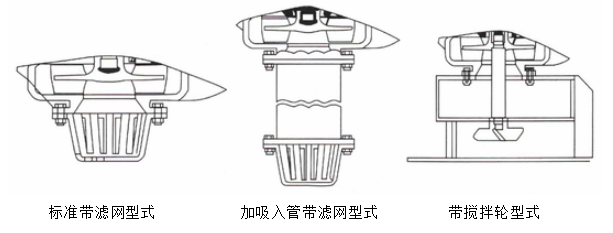

泵进口三种结构形式

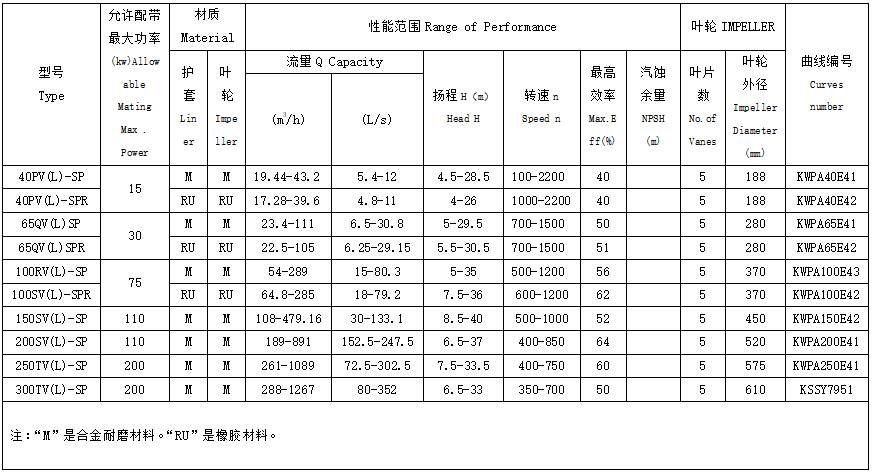

SP&SPR型液下泵性能表

Clear Water Performance for SP and SPR Sump Pumps

外型安装尺寸图

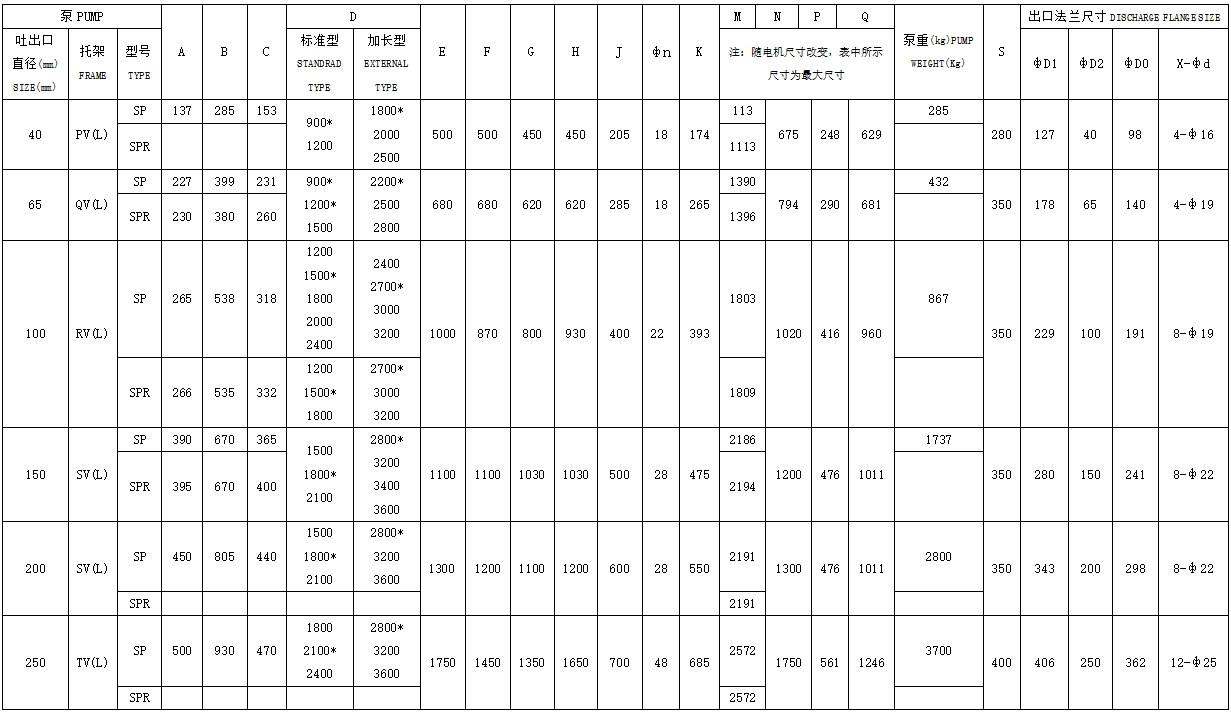

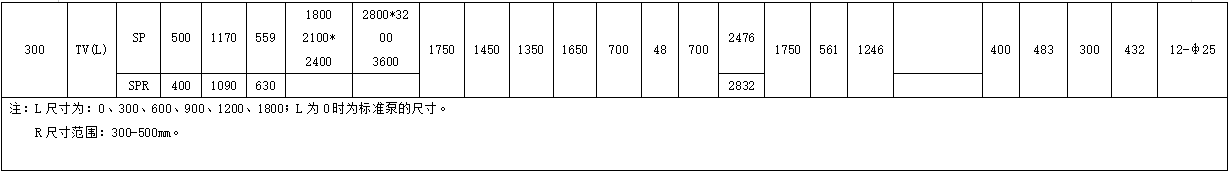

SP&SPR型液下泵外型尺寸表

Outline Dimensions for SP and SPR Sump Pumps
