1. Medium temperature ≤ 40 ℃, medium density ≤ 1050kg/m3, PH value within the range of 4~10, medium viscosity ≤ 1000CP;

3. This series of products must be immersed in the medium during operation, but the depth of penetration shall not exceed 10m;

4. The pump is mainly made of cast iron, without special order, and cannot be used to transport medium with strong corrosivity or containing strong corrosive solid particles;

5. In general, the length of fiber in the medium shall not be greater than the discharge outlet diameter of the pump, and the larger size of solids shall not be greater than the value recommended in the parameter table.

Product Overview

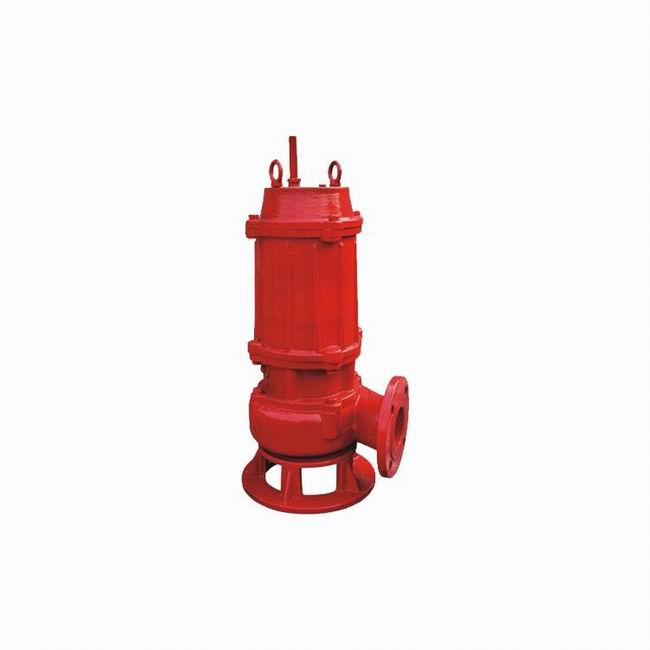

Jywq series automatic mixing submersible sewage pump adopts an automatic mixing device on the basis of ordinary sewage pump. The device rotates with the motor shaft to generate a strong mixing force, mixing the sediment in the sewage tank into suspended solids, which are sucked into the pump and discharged. It improves the anti blocking and sewage discharge capacity of the pump, completes the drainage, cleaning and desilting at one time, and saves the operating cost. It is an environmental protection product with obvious progressiveness and practicality.

Scope of application

1. Discharge of seriously polluted wastewater from factories and businesses.

2. Drainage system of urban sewage treatment plants, hospitals and hotels.

3. Sewage drainage station in residential area.

4. Water supply for drainage station and waterworks of civil air defense system.

5. Municipal engineering and construction site.

6. Auxiliary machines for exploration, mining and power plants.

7. Rural biogas digesters, farmland irrigation, and pond desilting.
