summary

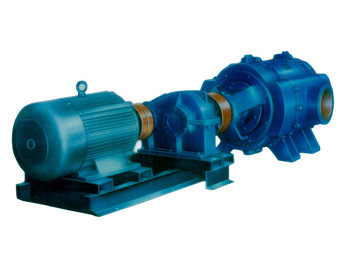

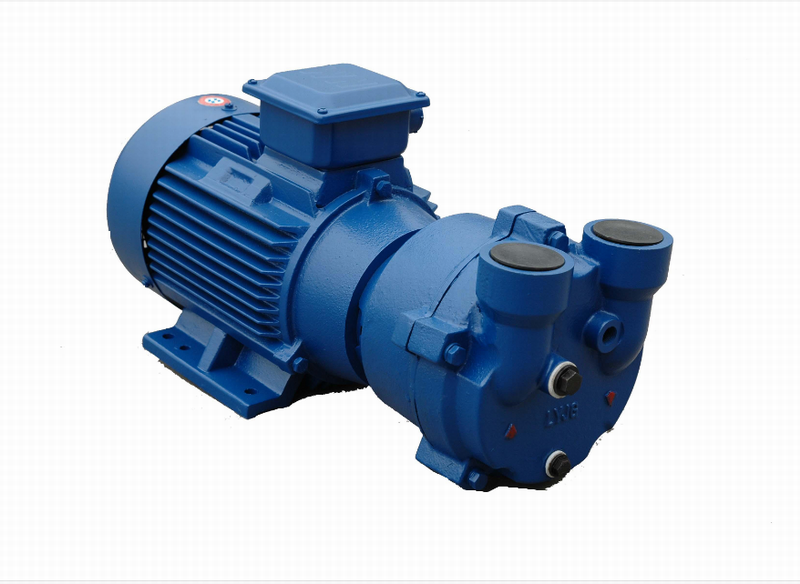

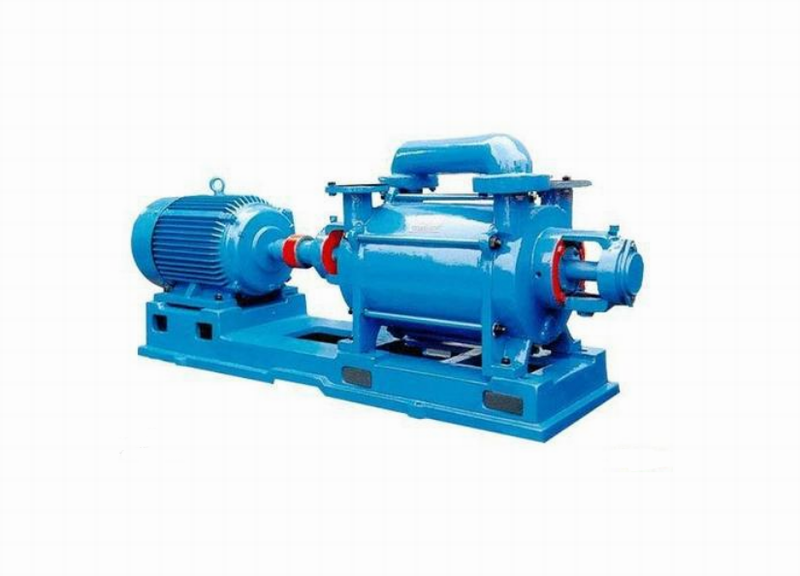

2BE series water ring vacuum pump stage compressor is usually used to pump gas that does not contain solid particles, is insoluble in water, and is non corrosive, so as to form vacuum and pressure in closed containers. By changing the result material, it can also be used to pump corrosive gas or use corrosive liquid as working fluid. It is widely used in papermaking, light skill, pharmacy, food, metallurgy, building materials, stone tools, coal washing, mineral processing, fertilizer and other industries.

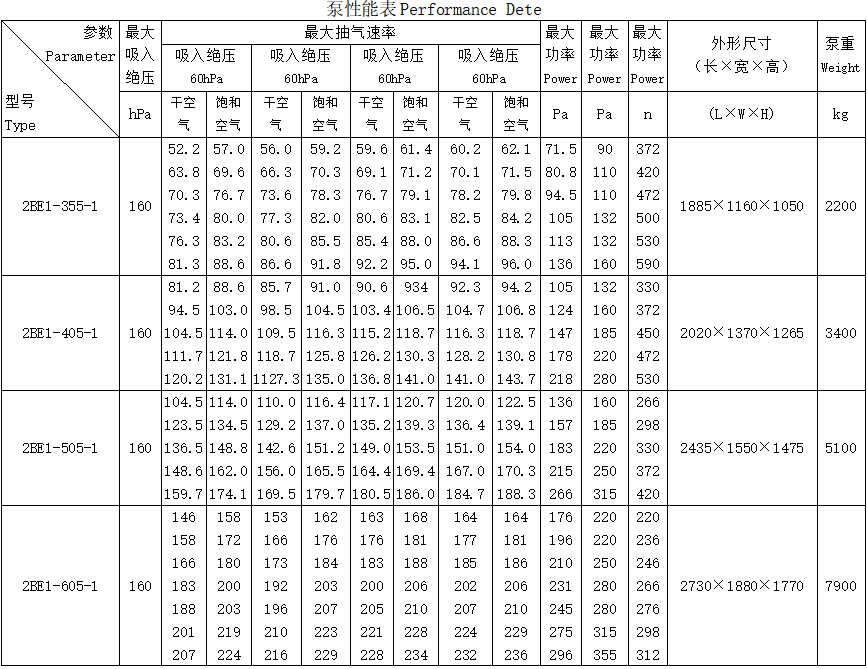

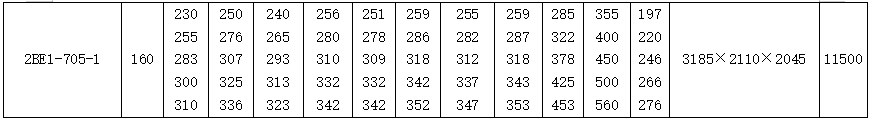

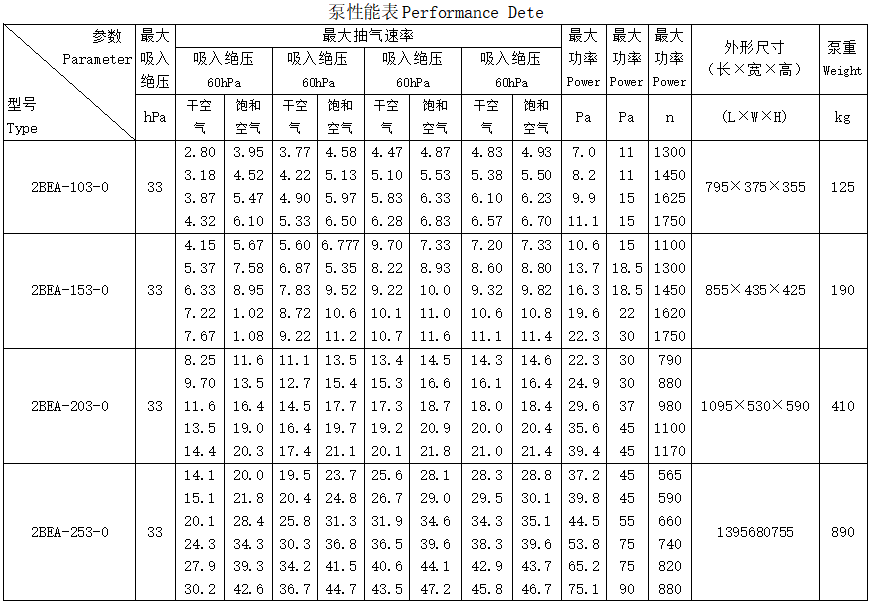

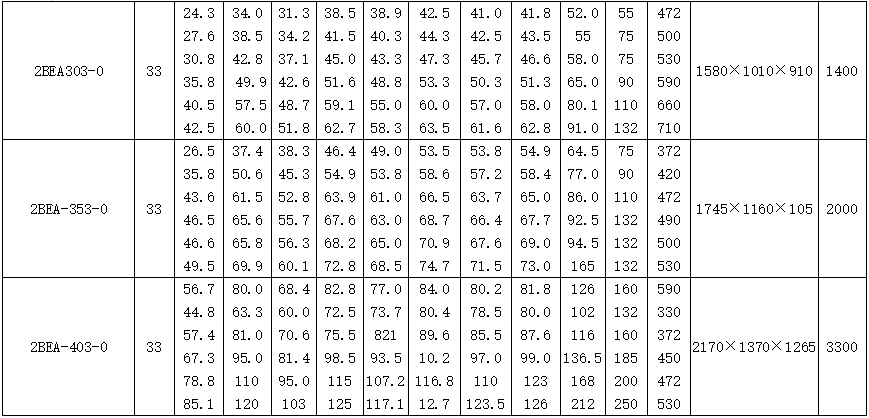

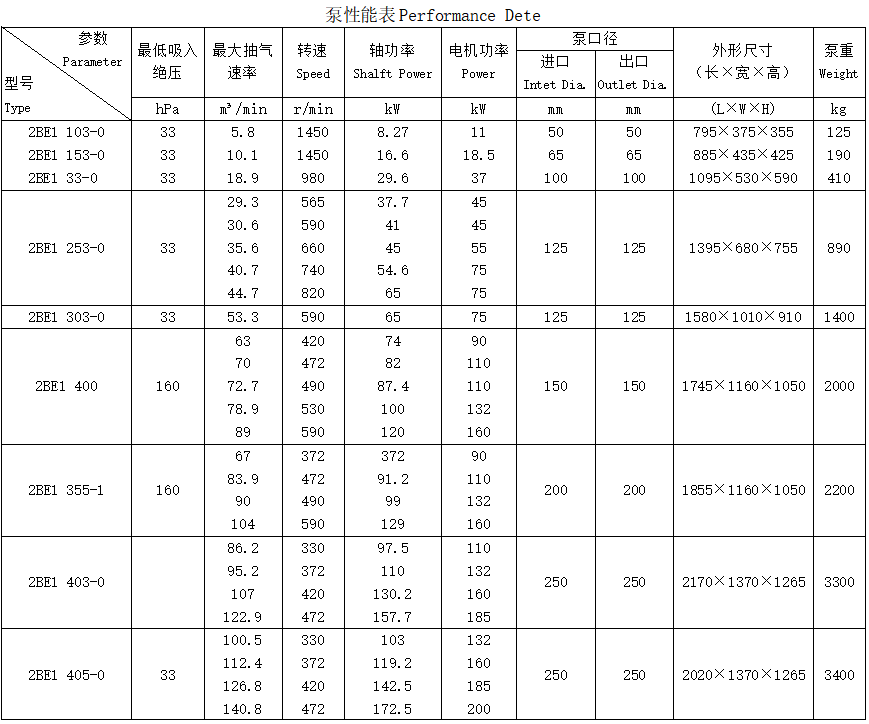

Model description

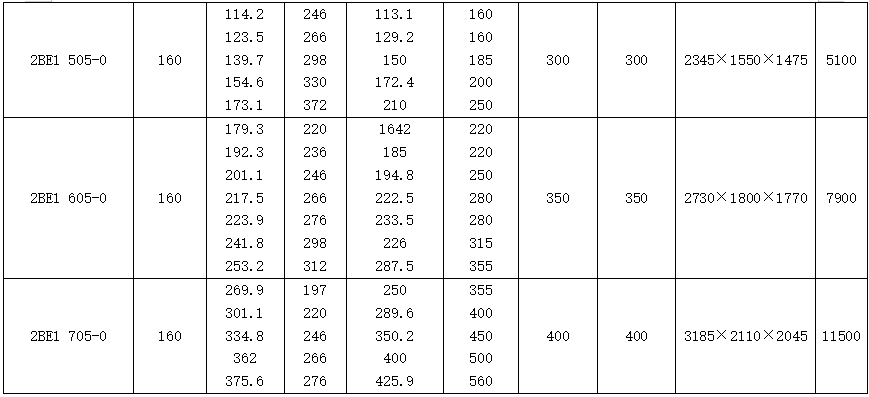

Note 1: The data in the table can be obtained in the last ten days:

1. Atmospheric pressure 0.1013Mpa (760mmHg)

2. Water inlet temperature 15 ℃

3. Suction air temperature 20 ℃

4. Relative air humidity 70%

Note II. Allowable deviation of performance: 10%

Note 3. The motor power is usually the matching power. If users have special requirements, please consult with the Technical Development Department

Note 4: Some pumps, such as 2BE-355-1, can be made into a pump body with a diaphragm. The foundation size of the pump remains unchanged. When the pump is running, both sides of the pump body can work under different absolute suction pressures.
