summary

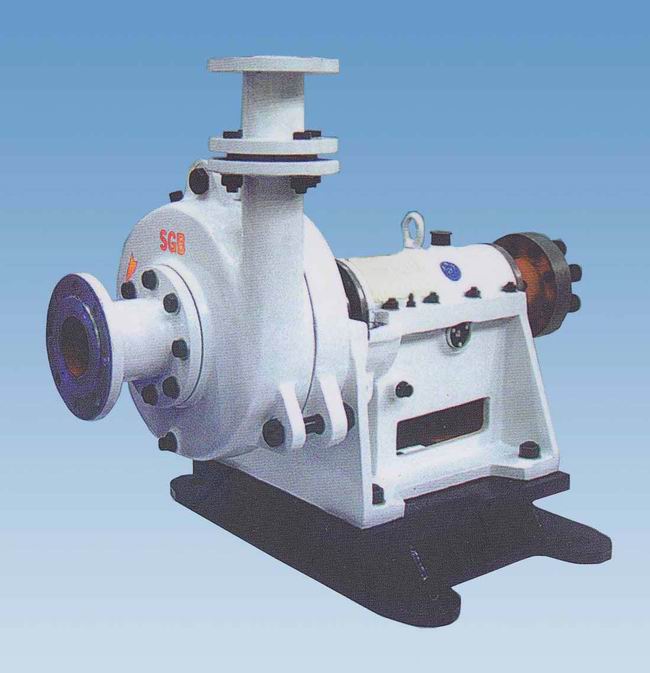

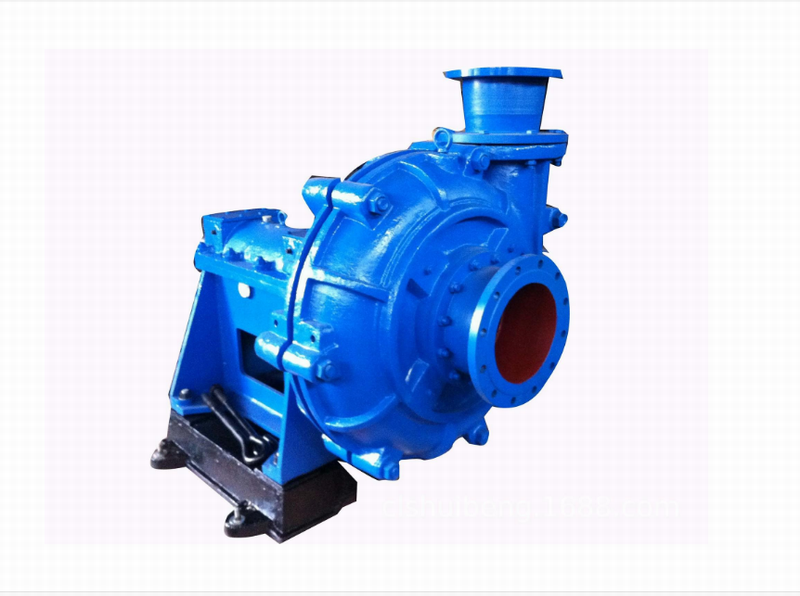

ZJ series slurry pump is a new generation of high-efficient wear-resistant energy-saving slurry pump developed by our company. This series of pumps adopts the internationally advanced solid-liquid two-phase flow theory and is designed according to the principle of small loss. The geometric shape of the flow passage components conforms to the flow state of the medium, reducing the local and along way hydraulic losses such as eddy current and impact, thus reducing the wear of the flow passage components, improving the hydraulic efficiency, and reducing the operating noise and vibration; The flow passage parts of this series of pumps are made of high hard alloy cast iron, which has high wear resistance, corrosion resistance and impact resistance, thus improving their service life. In addition, this series of pumps use power pressure reduction to ensure that the slurry is not easy to leak.

ZJ series slurry pump can be widely used for abrasive and corrosive slurry. Its solid liquid mixture has a large weight concentration of 45% mortar and 60% slurry. This series of slurry pumps have complete specifications, and can be driven in the form of direct connection, belt, hydraulic, variable frequency speed regulation, etc., and can also be operated in series or parallel according to user needs.

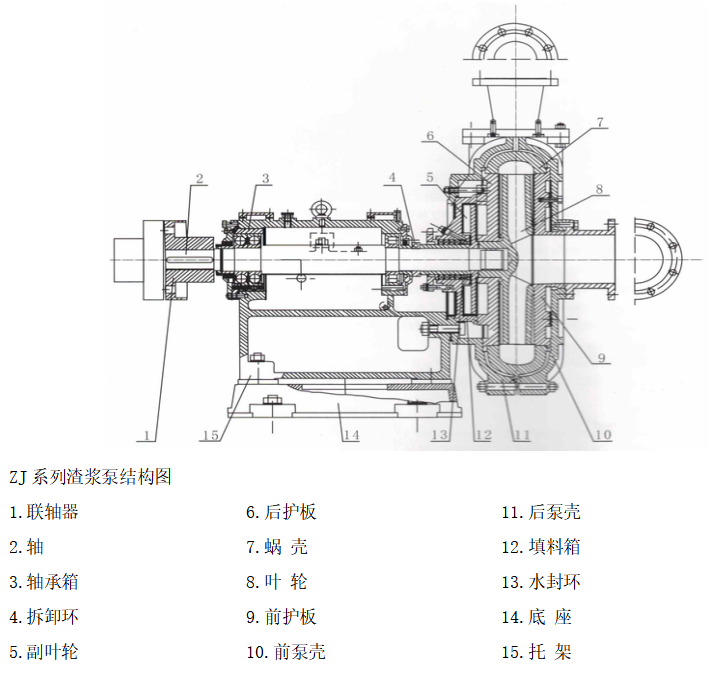

structure characteristics

1. Pump head structure:

   ◆ The pump body adopts a double-layer pump casing

   ◆ The shell structure is vertical split type, and the water outlet position can be rotated 8 times at 45 ° intervals Install and use at the same location.

2. Bracket structure:

    ◆ horizontal split type

    ◆ Suspension type

3. Shaft seal form:

    ◆ auxiliary impeller power seal+packing seal

    ◆ Packing seal

    ◆ Mechanical seal
